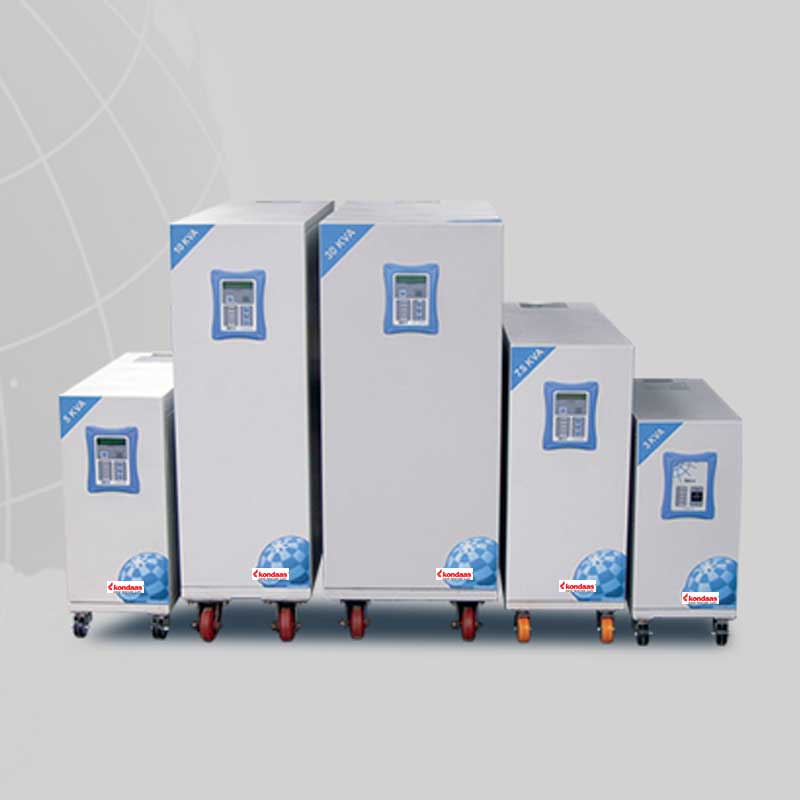

PLO

1 KVA to 5 KVA -1 phase input & 1 phase output

Features

MOSFET/ IGBT Design

Double Conversion Technology

High Frequency PWM Based Inverter

Using MOSFET IGBTs

Auto Re-Transfer Static Switch

Control Panel with LCD Display

Intelligent Battery Management

Energy Saving Mode

Technical Specification

Online UPS 1 Phase input 1 phase output

Capacity(KVA) 1/2 3/5 5/7.5/10
INPUT single single single
Voltage Range 230V, +/- 20% in single phase
Power factor at 0.8 TYPICAL
Frequency 50Hz +/- 3Hz
OUTPUT single single single
Voltage / Ragulation 230, +/- 1% single Phase +
Full Load Current Rated at 0.8 P.F
Nominal Frequency 50Hz +/- 0.5Hz
Power factor 0.8 P.F
Over Load 125% for minute & 150% for 1 minute
Static Voltage Regulation + / - 6% for 50% step load change
Wave Form Sinusoidal
Total Harmonic Distortion For linear load < 2.5 % for Non-linear load < 5%
Crest Factor 4.1
Inverter Efficiency 85% to 95% on full load depending on capacity
DC CHARACTERISTICS
Nominal Float Voltage 48V 72V 72/120V
Recharge Time 6-7 Hrs For 90% Recover 8 - 10 Hrs for 100% Recover
By Pass (Optional) Manual / Static
PROTECTIONS
Charge Input circuit breaker, Charger over voltage, Charger over current
Battery Battery low cut off / Current limit, HRC fuse, Battery over charger trip
Inverter Output over voltage / Over load trip, Current limit, Short Ckt
INDICATIONS / DISPLAY
Indications Manis ON, Charger ON, Battery low, Inverter ON, Fault / Trip, Phase R.Y.B. presence
Display LCD Display to indicate Output voltage, input voltage, DC voltage, load Percentage, Frenquency
ENVIRONMENTAL / OPTIONS
operating Temperature 0 deg to 40 deg
Relative Humidity 95% Non-Condensing
Max Operating altitude without derating 7500ft. / 2285 m
Acoustic noise <60db
Options PF Correction / Remote Display / Control Software / SNMP Compatibility

Due to Continuous development in technology & Design , the Specification without notice

Custom made UPS systems are manufactured as per request.

5 KVA to 60 KVA-3 phase input & 1 phase output

Features

IGBT Design

Microcontroller Based Double Conversion Technology

Active Power Factor Correction at UPS Input

High Frequency PWM Based Inverter Using IGBTs

Auto Re-Transfer Static Switch

Control Panel with LCD Display

Intelligent Battery Management

Cold Start

Technical Specification

Online UPS 3 Phase input 1 phase output

Capacity(KVA) 5/7.5 7.5/10/15 10/15/20/30/40 50/60
INPUT Three Three Three Three
Voltage Range 415V, +/- 25% in single phase
Power factor at 0.8 TYPICAL
Frequency 50Hz +/- 3Hz
OUTPUT single single single single
Voltage / Ragulation 230, +/- 1% single Phase
Full Load Current Rated at 0.8 P.F
Nominal Frequency 50Hz +/- 0.5Hz
Power factor 0.8 P.F
Over Load 125% for minute & 150% for 1 minute
Static Voltage Regulation + / - 6% for 50% step load change
Wave Form Sinusoidal
Total Harmonic Distortion For linear load < 2.5 % for Non-linear load < 5%
Crest Factor 3.1
Inverter Efficiency 85% to 95% on full load depending on capacity
DC CHARACTERISTICS
Nominal Float Voltage 120V 240V 360V 480V
Recharge Time 6-7 Hrs For 90% Recover 8 - 10 Hrs for 100% Recover
By Pass (Optional) Manual / Static
PROTECTIONS
Charge Input circuit breaker, Charger over voltage, Charger over current, Fuse Failure, abnormal phase sequence
Battery Battery low cut off / Current limit, HRC fuse, Battery over charger trip
Inverter Output over voltage / Over load trip, Current limit, Short Ckt
INDICATIONS / DISPLAY
Indications Manis ON, Charger ON, Battery low, Inverter ON, Fault / Trip, Phase R.Y.B. presence
Display LCD Display to indicate Output voltage, input voltage, DC voltage, load Percentage, Frenquency
ENVIRONMENTAL / OPTIONS
operating Temperature 0 deg to 40 deg
Relative Humidity 95% Non-Condensing
Max Operating altitude without derating 7500ft. / 2285 m
Acoustic noise <60db
Options PF Correction / Remote Display / Control Software / SNMP Compatibility

Due to Continuous development in technology & Design , the Specification may chnage without notice

Custom made UPS systems are manufactured as per request.

5 KVA to 60 KVA-3 phase input & 3 phase output

Features

IGBT Design

Microcontroller Based Double Conversion Technology

Active Power Factor Correction at UPS Input

High Frequency PWM Based Inverter Using IGBTs

Auto Re-Transfer Static Switch

Control Panel with LCD Display

Intelligent Battery Management

Cold Start

Technical Specification

Online UPS 3 Phase input 3 phase output

Capacity(KVA) 5/7.5 7.5/10/15 10/15/20/30/40 50/60
INPUT Three Three Three Three
Voltage Range 415V, +/- 25% in single phase
Power factor at 0.8 TYPICAL
Frequency 50Hz +/- 3Hz
OUTPUT Three Three Three Three
Voltage / Ragulation 400, +/- 1% three Phase
Full Load Current Rated at 0.8 P.F
Nominal Frequency 50Hz +/- 0.5Hz
Power factor 0.8 P.F
Over Load 125% for minute & 150% for 1 minute
Static Voltage Regulation + / - 6% for 50% step load change
Wave Form Sinusoidal
Total Harmonic Distortion For linear load < 2.5 % for Non-linear load < 5%
Inverter Efficiency 85% to 95% on full load depending on capacity
Crest Factor 3.1
DC CHARACTERISTICS
Nominal Float Voltage 120V 240V 360V 480V
Recharge Time 6-7 Hrs For 90% Recover 8 - 10 Hrs for 100% Recover
By Pass (Optional) Manual / Static
PROTECTIONS
Charge Input circuit breaker, Charger over voltage, Charger over current, Fuse Failure, abnormal phase sequence
Battery Battery low cut off / Current limit, HRC fuse, Battery over charger trip
Inverter Output over voltage / Over load trip, Current limit, Short Ckt
INDICATIONS / DISPLAY
Indications Manis ON, Charger ON, Battery low, Inverter ON, Fault / Trip, Phase R.Y.B. presence(I/P, O/P)
Display LCD Display to indicate Output voltage, input voltage, DC voltage, load Percentage, Frenquency
ENVIRONMENTAL / OPTIONS
Operating Temperature 0 deg to 40 deg
Relative Humidity 95% Non-Condensing
Max Operating altitude without derating 7500ft. / 2285 m
Acoustic noise <60db
Options PF Correction / Remote Display / Control Software / SNMP Compatibility

Due to Continuous development in technology & Design , the Specification may chnage without notice

Custom made UPS systems are manufactured as per request.
