PL8150 -1KVA to 3KVA

The line-interactive UPS uses a totally different design than any type of offline UPS. In this type of unit, the separate battery charger, inverter and source selection switch have all been replaced by a combination inverter/converter, which both charges the battery and converts its energy to AC for the output as required. AC line power is still the primary power source, and the battery is the secondary.

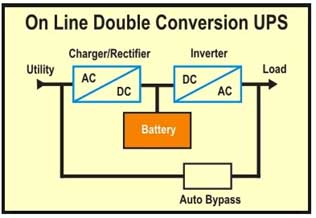

PL8150-HF 1KVA~3KVA online UPS is an on-line double-conversion UPS with input power factor correction (PFC), output power factor 0.8 offering high levels of reliability and protection for critical servers and data processing IT systems. Besides sufficient runtime as backup power, PL8150 UPS (long time model) can be fitted with matching battery extension packs for long runtime applications; besides some standard features of normal UPS, it is also able to bear wide input voltage in harsh environment, and optional N+X redundancy parallel function is also available.

PL8150 -1KVA to 3KVA

Suitable for Group of computers,Servers,Swtiches And Security systems....etc

Features

High frequency and true double-conversion

DSP (Digital Signal Processors) technology

Input power factor correction (PFC)

Wide input voltage range (110V ~ 300V)

Output power factor 0.9

Cold start

Auto sensing frequency

ECO mode operation for energy saving

Selectable output voltage via LCD

Output bypass settable via LCD

Power-on self test

Advanced battery management (ABM)

Short circuit and overload protection

Automatic charging in OFF mode

Auto control fan speed when loads varies

Standard RS232 communication port and RJ45 protection

Optional USB / SNMP communication port

Optional emergency power off (EPO)

Optional extension battery bank

Optional built-in isolation transformer

Technical Specifications

Model IKVAS IKVAS 2KVAS 2KVAH 3KVAS 3KVAH
Rated Capacity 800W/1000VA 1600W/2000VA 2400W/3000VA
Input Input Single phase and Earthing
Voltage Range 115V±5VAC - 295V±5VAC
Frequency Range 46Hz-54Hz@50Hz / 56Hz-64Hz@60Hz
Power Factor ≥0.98
Bypass Range (176±5 - 255±5) VAC (Adjustable)
Current Harmonic <15% (100% Non Linear Load)
Output Output Style Single phase and Earthing
Rated Voltage 208VAC/220VAC/230VAC/240VAC
Power Factor 0.8
Voltage Precision ±2%
Output Frequency Line Mode
Battery Mode

1.When the input frequency in the range, the output frequency is same as that of input.

2.When the input frequency is out of range, the output frequency is (50/60 ± 0.2)Hz when turn to battery mode

(50/60 ± 0.2) Hz
Crest Ratio 3:1
Transfer Time Mains to Battery - 0ms
Mains to Bypass <4ms
Over Load Capacity Battery Mode
Line Mode
108% ± 5% <load ≤150% ± 5%> 30s Cutoff Output and Warn
150% ± 5%<load ≤200% ± 5% > 300ms Cutoff Output and Warn
108% ± 5%<load ≤150% ± 5% > 30s Transfer to bypass and Warn
150% ± 5%<load ≤200% ± 5% > 300ms Transfer to bypass and Warn
Efficiency Battery Mode
Line Mode
Full Load ≥ 84%
Full Load ≥ 86%
Output Voltage Distortion ≤ 3% (100% Linear Load)
≤ 5% (100% Non Linear Load)
Battery Input Battery Voltage
24VDC 36VDC 24VDC 36VDC 48VDC 72VDC 96VDC 48VDC 72VDC 96VDC 72VDC 96VDC 72VDC 96VDC
Internal Battery Capacity
2 3 4 6 8 6 8
Internal Battery Type 12V/7Ah Sealed Lead Acid Maintenance free Battery (only refers to standard UPS)
Backup Time Full Load ≥ 4min (As for long backup UPS, the backup time is determined by the capacity of battery
Charge Current (A)
1 1 6 6 1 1 1 6 6 6 1 1 6 6
Work Environment
Model 1kVA to 3KVA
Temperature 0◦C to 40◦C
Relative Humidity 0 to 95% non condensing
Altitude < 1500m when>1500m,lower the rated power for use
Store Temperature -25◦C to 55◦C
Mechanical Specification
Model Battery Voltage Dimension W*D*H (mm) Net Weight/Gross Weight (Kg)
1KVAS 24VDC 144*400*215 9.7/10.7
36VDC 13-Dec
1KVAH 24VDC 5.6/6.6
36VDC 5.8/6.8
2KVAS 48VDC 191*469*339 20/22
72VDC 24.5/26.5
96VDC 28.5/31
2KVAH 48VDC 11.4/13.4
72VDC 11.4/13.4
96VDC 11.4/13.4
3KVAS 72VDC 24.6/26.6
96VDC 29/31.5
3KVAH 72VDC 11.6/13.6
96VDC 11.9/13.9

Communication Interface -RS232 Communication

PL8150 - 6KVA to 10KVA

PL8150-HF 6KVA~10KVA online UPS is an on-line double-conversion UPS with input power factor correction (PFC),and offering high levels of reliability and protection for IT systems, telecommunications equipment and mission critical systems, ensuring maximum power reliability. Besides sufficient runtime as backup power, PL8150-HF UPS (long time model) can be fitted with matching battery extension packs for long runtime applications; Besides some standard features of normal UPS, it is able to bear wide input voltage in harsh environment, and support 50/60Hz frequency conversion mode, and optional N+X redundancy parallel function is also available.

Application

Servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM etc.

Key Features

High frequency and true double-conversion

DSP digital control technology

Input power factor correction (PFC)

Wide input voltage range

Cold start

Auto sensing frequency

ECO mode operation for energy saving

Selectable output voltage via LCD

50 Hz / 60 Hz frequency conversion mode available

Selectable battery low voltage via LCD

Power-on self test

Advanced battery management (ABM)

Short circuit and overload protection

Automatic charging in OFF mode

Fan speed auto control when loads varies

Standard RS232 communication port

Optional USB / SNMP communication port

Optional emergency power off (EPO)

Optional extension battery bank

Optional built-in isolation transformer

Optional manual bypass

Optional N+X redundancy parallel

Technical Specification
Performance
Model Rating Input Output Frequency Dimension W*L*H (mm) Weight (Kg)
Voltage Current Voltage Current
6KVAS 6KVA/4.2KW (176-276) VAC 30A max 220VAC 27A 50Hz 270*570*720 91
6KVAH 6KVA/4.2KW (176-276) VAC 30A max 220VAC 27A 50Hz 270*570*720 36
10KVAS 10KVA/7KW (176-276) VAC 51A max 220VAC 45A 50Hz 270*570*720 94
10KVAH 10KVA/7KW (176-276) VAC 51A max 220VAC 45A 50Hz 270*570*720 39
10KVAH3C 10KVA/7KW (304-480) VAC 51A max 220VAC 45A 50Hz 270*570*720 40
15KVAH3C 15KVA/10.5KW (304-480) VAC 73A max 220VAC 68A 50Hz 270*570*720 60
20KVAH3C 20KVA/14KW (304-480) VAC 100A max 220VAC 91A 50Hz 270*570*720 60
Electrical Performance
Mains Input
Model Voltage Frequency Power Factor
6KVAH(S)/10KVAH(S) Single Phase 220VAC 46Hz to 54Hz >0.95 (full load)
10KVAH3C/15KVAH3C/20KVAH3C Three Phase 380VAC 46Hz to 54Hz >0.95 (full load)
Battery Input
Model 6KVAS 10KVAS 6KVAH / 10KVAH / 10KVAH3C / 15KVAH3C / 20KVAH3C
Battery Voltage 240VDC
Backup Time Full Load/Half Load (min) >7/20 >5/13
Output
Output Stability Power Factor Frequency Stability THD Over load Capacity Crest Factor
±1% 0.7 Under normal condition,(in AC mode, and frequency is in the limits), Output frequency would synchronize with input, otherwise, frequency stability would be ±0.5% Under full linear load THD <3% 105% to 130% load,10min go to bypass / >130% load 1min shut down output 3:1
Environment
Temperature 0◦C to 40◦C
Relative Humidity 0 to 95% non condensing
Altitude Less than 100m
Store Temperature 0◦C to 40◦C

In Case you are using the UPS on above 1000m altitude, he UPS rating would be decreased

Altitude(m) 1000 1500 2000 3000 3500 4000 4500 5000
Load % that permitted 100% 93% 90% 80% 78% 75% 68% 65%
Net Communication

This series of UPS provides a card slot for the intelligent LAN card (optional), which helps to realize the remote monitoring.

RS232 Communication Interface

RS232 is serial port interface provided to monitor the main AC and UPS. UPS control is also available via this port.
