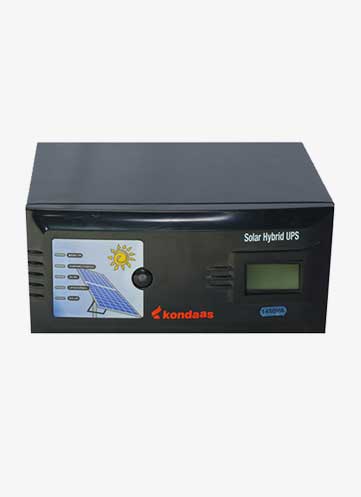

LOW POWER SOLAR HYBRID INVERTER

Solar Energy is a best alternative energy solution. The visible light from the SUN (Solar energy) can be converted into electric energy by Photovoltaic Cells. It has potential to cater the emerging needs of the power throughout the world. Solar Hybrid Inverters are cost effective and easy to install.

KONDAAS True Hybrid Solar Home UPS is the most innovative and advance UPS that runs both on solar power (generated through solar panels) and the utility (grid) power supply. KONDAAS True Hybrid Solar Home UPS is the advanced solar hybrid home UPS which charge the battery thru readily available solar energy/ Mains by using it’s artificial intelligence. It’s ISSRC logic use Solar Power for its maximize utilization to empower homes.

Ratings Available : KONDAAS True Hybrid Solar Home UPS are available in the following rating.

650/ 850/ 1000 VA in 12V DC

1450/ 2000 VA in 24V DC

Solar Panel Connected for 50 Amps PWM/MPPT* Charge Controller (Max.) : 850 Watt panel per 12VDC

How KONDAAS True Hybrid Solar Sine wave UPS is different from other Hybrid Solar UPS Intelligent Battery Charging and Load Sharing using High Performance Advance DSP based Pure Sine Wave Technology.

ISSRC Logic : Intelligent Solar Selection based on Real Clock Logic.

PWM/MPPT* Solar Charge Controller : Inbuilt fully regulated PWM/MPPT* 50/70 Amps (Maximum Power Point Tracking) Charge Controller to get optimum utilization of Solar Power.

Ability to provide rated Output Power directly from Solar Panels (if Solar Power is available) in addition to charges the battery simultaneously.

Intelligent battery charging from Solar and Mains by giving priority to Solar Power and only remain power consumes from Mains.

Ability to run the Output Load exclusively through Solar Power, saving Grid Power and your hard earned money.

Provides power from the battery up to 80% charging, when solar and grid power is available and battery is fully charged, resulting save money and save electricity.

Intelligent Thermal Management System : Programmed Inbuilt cooling fan which operates as needed with thermal protection to prevent undue loss of energy.

Provision to set ‘NO CHARGING of Battery from Mains’ (by pressing a button) for Charging through Solar Power Only resulting true power saving.



Features

Operate on both Solar Power as well as Grid Power.

It is integrated with in-built fully regulated PWM/MPPT* Solar Charge Controller for max. Solar Power utilization.

It senses the availability of solar power, grid power and accordingly gives preference to charging thru solar power and switches to the grid power if the solar power is not available.

It is designed to give you maximum benefit from the solar energy and minimize your electricity bill drastically.

Highly efficient battery charging from the solar energy as a result you will get non-stop power, save money, save electricity and protect the environment.

Advanced DSP based technology for absolute and stable and 100% pure sine wave output.

Indications for Mains ON, UPS ON, Batt. Low, Charging/ Discharging, Over Load, Short Circuit, Thermal Trip, Solar available/ Not available and PV reverse on LCD Display.

User- friendly LCD for the display of mode of operation and all parameters.

Dual Mode of working : UPS and Normal

    UPS Mode : Fast switching, Input operating range from 180V to 260V. Normal Mode : Wide Input operating range from 100V.

Closed Loop Auto Sensing Software Control (ASSC) Smart Battery Charging Technology for longer battery life, while charging either by Solar power or grid power.

Dual selectable charging current option for Normal Charging and High Charging.

Intelligent overload sensing circuitry with auto retries facility.

Programmable thermal protection : cooling fan which operates as needed.

High Power new generation MOSFET cable to handle high in-rush/ surge current.

Double stage MOSFET Over Current Protection by measuring Rds ON.

Highest efficiency at lower cost.

Pure Sine Wave Output with low Total Harmonic Distortion (TDH).

High End DSP based design of Solar Charge Controller for charging thru Solar Power.

Pulse by pulse current limiting with auto-reset resulting in efficient overload and short circuit protection.

Eco-friendly operation.

Solar PV reverse voltage Protection.

Electronic Over Current Charging Protection.

Reverse Current Flow Protection from Battery to Solar Panel generally during night.

No mechanical contact for charge controller.

Designed for continuous reliable and robust operation.

# If solar is available and battery declared as full charged, then Mains will automatic cut till battery discharge up to pre-defined level.

Technical Specification
Model 650 VA H-UPS 850 VA H-UPS 1000 VA H-UPS 1450 VA H-UPS 2000 VA H-UPS
Nominal Battery Voltage 12 VDC 24 VDC
Solar Panel Connected for 50 Amps PWM/MPPT* Charge Controller (Max.) 850Wp 850Wp 850Wp 1700wp 1700Wp
AC Mains Mode
Ac Mains Mode
Input Voltage Range (Normal Mode) 100 to 280 VAC ± 5 VAC (Wide Range)
Input Voltage Range (UPS Mode) 180 to 260 VAC ± VAC
Changeover Time Maximum <30 ms (in Normal Mode) and < 10 ms (in UPS Mode)
Max. Charging Current (NC) 10A + 1A
Max. Charging Current (HC) 10A + 1A
Boost Charging Voltage 14.4 ± 0.2 VDC 28.8 ±0.4 VDC
Float Charging Voltage 13.7 ± 0.2 VDC 27.4 ± 0.4 VDC
Battery Backup Mode
Output Voltage at No Load 220 VAC ± 7 VAC
Output Frequency 50.0Hz ± 0.5Hz
Output Wave Form (At No Load) 100% Pure Sine Wave
Battery Low alarm 10.6 ± 0.2 VDC 21.2 ± 0.2 VDC
Battery Low protection 10.4 ± 0.2 VDC 20.8 ± 0.2 VDC
Overload (Normal/ UPS) 120%
Short Circuit (Normal/ UPS) 300%
Charging Mode - SOLAR (MPPT Charge Controller – 40 Amp.)
Max. Charging Current (NC) 29 Amp. ± 1.5Amp.
Max. Charging Current (HC) 32 Amp. ± 1.5Amp.
Charge Controller Efficiency > 98%
Multi Color LCD Display Colors
  • Yellow Color : For Inverter/ UPS mode. No AC Mains (Utility Power)

  • Green Color : When AC mains (Utility Power) is available

  • Red Color : In case of any Abnormal Condition

Displaying Parameters

AC mains voltage

O/P Load in %

Battery input voltage

Battery Charging/ Discharging current (Bar Graph)

Faults Status

  • Overload
  • PV Reverse
  • Short Circuit
  • Fuse Trip
  • Over Temp (Thermometer)
  • Low Battery (Empty ‘Battery’ Blinking)

Inverter Status

Solar availability Status

Protection

PV Reverse, Reverse Current Flow (to PV module), Battery Voltage Low (4 Auto Retries), Over Load (6 Auto Retries), Battery full Charge, Over Temperature, Short Circuit

Weight and Dimensions
Model 650 VA 850 VA 1000 VA 1450 VA 2000 VA
With Packaging L x W x H (in mm) 330X325X185 330X325X185 330X325X185 360X390X245 360X390X245
Without Packaging L x W x H (in mm) 275x253x111 275x253x111 275x253x111 275x303x165 275x303x165
Net Weight 8.65Kg 9.65Kg 9.9Kg 16.1Kg 18.3Kg
Gross Weight 9.45Kg 10.6Kg 10.7Kg 17.2Kg 19.5Kg
Load Chart*
Rating 650 VA 850 VA 1000 VA 1450 VA 2000 VA
Options
A B C D
A B C D
A B C D
A B C D
A B C D
Computers
- - - 1
- - - 1
- - - 2
- - - 3
- - - 4
Printers
- - - 1
- - - 1
- - - 1
- - - 1
- - - 1
Television
- - 1 -
- - 1 -
- - 1 -
- - 2 -
Tubelight
3 - 2 1
4 - 3 1
4 - 3 1
8 - 6 2
11 - 7 3
Fan
3 - 3 2
4 - 3 3
5 - 4 3
8 - 6 4
12 - 7 5
CFL
4 28 5 3
4 37 5 5
5 42 5 5
5 62 9 5
6 80 9 7

HIGH POWER SOLAR HYBRID INVERTER

Ratings Available : KONDAAS True Hybrid Solar Home UPS are available in the following rating.

  • 2.5 KVA in 36 V DC
  • 2.5/ 3.5/ 5 KVA in 48 V DC
  • 5 KVA in 96 V DC
  • 5/ 7.5/ 10 KVA in 120 V DC
  • 10/ 12 KVA in 180 V DC
  • 12 KVA in 192 V DC
  • 15 KVA in 240 V DC

Solar Panel Connected for 50Amps PWM/MPPT* Charge Controller (Max.) : 850 Watt panel per 12VDC

How KONDAAS True Hybrid Solar Sine wave UPS is different from other Hybrid Solar UPS :

Intelligent Battery Charging and Load Sharing using High Performance Advance DSP based Pure Sine Wave Technology.

ISSRC Logic : Intelligent Solar Selection based on Real Clock Logic.

PWM/MPPT* Solar Charge Controller : Inbuilt fully regulated PWM/MPPT* (Maximum Power Point Tracking) Charge Controller to get optimum utilization of Solar Power.

Ability to provide rated Output Power directly from Solar Panels (if Solar Power is available) in addition to charges the battery simultaneously.

Intelligent battery charging from Solar and Mains by giving priority to Solar Power and only remain power consumes from Mains.

Ability to run the Output Load exclusively through Solar Power, saving Grid Power and your hard earned money.

Provides power from the battery upto 80% charging, when solar and grid power is available and battery is fully charged, resulting save money and save electricity.

Intelligent Thermal Management System : Programmed Inbuilt cooling fan which operates as needed with thermal protection to prevent undue loss of energy.

Provision to set ‘NO CHARGING of Battery from Mains’ (by pressing a button) for Charging through Solar Power Only resulting true power saving.

Wireless operational Mode (OPTIONAL)

Features

Operate on both Solar Power as well as Grid Power.

It is integrated with in-built fully regulated PWM/MPPT* Solar Charge Controller for max. Solar Power utilization.

It senses the availability of solar power, grid power and accordingly gives preference to charging thru solar power and switches to the grid power if the solar power is not available.

It is designed to give you maximum benefit from the solar energy and minimize your electricity bill drastically.

Highly efficient battery charging from the solar energy as a result you will get non-stop power, save money, save electricity and protect the environment.

Advanced DSP based technology for absolute and stable and 100% pure sine wave output.

Indications for Mains ON, UPS ON, Batt. Low, Charging/ Discharging, Over Load, Short Circuit, Thermal Trip, Solar available/ Not available and PV reverse on LCD Display.

User- friendly LCD for the display of mode of operation and all parameters.

Dual Mode of working : UPS and Normal

    UPS Mode : Fast switching, Input operating range from 180V to 260V. Normal Mode : Wide Input operating range from 100V.

Closed Loop Auto Sensing Software Control (ASSC) Smart Battery Charging Technology for longer battery life, while charging either by Solar power or grid power.

Dual selectable charging current option for Normal Charging and High Charging.

Intelligent overload sensing circuitry with auto retries facility.

Programmable thermal protection : cooling fan which operates as needed.

High Power new generation MOSFET cable to handle high in-rush/ surge current.

Double stage MOSFET Over Current Protection by measuring Rds ON.

Highest efficiency at lower cost.

Pure Sine Wave Output with low Total Harmonic Distortion (TDH).

High End DSP based design of Solar Charge Controller for charging thru Solar Power.

Pulse by pulse current limiting with auto-reset resulting in efficient overload and short circuit protection.

Eco-friendly operation.

Solar PV reverse voltage Protection.

Electronic Over Current Charging Protection.

Reverse Current Flow Protection from Battery to Solar Panel generally during night.

No mechanical contact for charge controller.

Designed for continuous reliable and robust operation.

Technical Specification
Ac Mains Mode
Input Voltage Range (Normal Mode) 100 to 280 VAC ± 5 VAC (Wide Range)
Input Voltage Range (UPS Mode) 180 to 260 VAC ± 5VAC
Changeover Time Maximum <30 ms (in Normal Mode) and < 10 ms (in UPS Mode)
Max. Charging Current (NC) 10A + 1A
Max. Charging Current (HC) 14A + 1A
Boost Charging Voltage 14.4 ± 0.2 VDC per Batt.
Float Charging Voltage 13.7 ± 0.2 VDC per Batt.
Battery Backup Mode
Output Voltage at No Load 220 VAC ± 7 VAC
Output Frequency 50.0Hz ± 0.5Hz
Output Wave Form (At No Load) 100% Pure Sine Wave
Battery Low alarm 10.6 ± 0.2 VDC per Batt.
Battery Low protection 10.4 ± 0.2 VDC per Batt.
Overload (Normal/ UPS) 120%
Short Circuit (Normal/ UPS) 300%
Charging Mode – SOLAR (PWM/MPPT* Charge Controller – 50 Amp.)
Max. Charging Current (NC) 29 Amp. ± 1.5Amp.
Max. Charging Current (HC) 32 Amp. ± 1.5Amp.
Charge Controller Efficiency > 98%
Multi Color LCD Display Colors
  • Yellow Color : For Inverter/ UPS mode. No AC Mains (Utility Power)

  • Green Color : When AC mains (Utility Power) is available

  • Red Color : In case of any Abnormal Condition

Displaying Parameters :

AC mains voltage

O/P Load in %

Battery input voltage

Battery Charging/ Discharging current (Batt. Bar)

Faults Status

  • Overload
  • PV Reverse
  • Short Circuit
  • Fuse Trip
  • Over Temp (Thermometer)
  • Low Battery (Empty ‘Battery’ Blinking)

Inverter Status

Solar availability Status

Protection

: PV Reverse, Reverse Current Flow (to PV module), Battery Voltage Low (4 Auto Retries), Over Load (6 Auto Retries), Battery full Charge, Over Temperature, Short Circuit

Load Chart*
Application Load Type 2.5KVA 3.5KVA 5KVA 7.5KVA 10KVA 12KVA
Petroleum Outlet Fan - 1 4 5 5 5
Tube Light - 5 4 5 8 8
Petrol Filling Machine - 1 2 3 4 5
Institute Fan Only 25 30 50 75 100 110
Fan 15 18 35 55 70 75
Tube Light 13 17 20 35 40 50
Browsing Centre A.C. - - 1 1 2 2
Fan 4 5 4 8 8 10
Tube Light 4 6 4 8 8 10
Computer 5 6 2 6 6 6
Browsing Centre Fan 4 5 10 12 20 25
Tube Light 4 5 10 12 20 25
Computer 5 6 8 12 15 20
Corporate Building A.C - - 1 1 1 2
Fan 15 18 8 12 16 20
Tube Light 13 17 8 12 16 20
