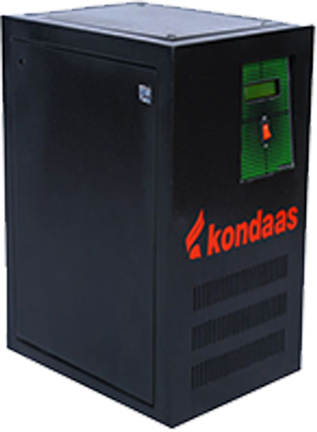

DSP Sine Wave Static UPS (1In- 1Out)

Sophisticated and critical industrial equipments and systems must not be left to face power problems. When connected with uneven power output, you are exposing your appliance to danger where they are mostly encounter with problems as sags, surges, noise, brown outs, black outs etc.

In an industry you are required to keep electricity consumption as low as possible by ensuring that there is no interruption in the operation as well. Kondaas DSP Sine Wave Static UPS is specialized in providing clean and stable power supply to all connected appliances and equipments. We have developed our DSP Sine Wave Static UPS on world’s most advanced technology known as DSP.

Features

State of the Art MOSFET/IGBT Based PWM Technology to increase Crest Factor

Auto Sense Intelligent Control Smart Charger

Electronic change- over, hence much better reliability

Quiet of AC motors as well as other inductive loads unlike the noise that emanates from modified Sine Wave Systems

Very low Total Harmonic Distortion < 3%

Fast Changeover ensuring Compatibility with Computers

TDR(Time Delay Relay), especially for AC compressor based applications

Mains Mode Short Circuit Protection

Surge Load Capacity up to 300%

Less Operating Coast as compared to that with Online UPS as well as DG Sets

Bypass Switch in case of system failure

Compatibility with D.G Sets

These Static UPS’s can be integrated with solar power to charge the batteries by using external solar charge controllers.

Applications

Major power Back up source in corporate offices as well as Call Centers

Computer & peripherals /office Equipment like, Scanners, Printers, Fax Machine etc.

Emergency & Mobile Power Systems

A.C and all Compressor Based Applications

Petrol/Diesel Dispensing(Filling) Machines

Thread Mills & other Health Equipment in Homes/Gyms

Water Pumps and similar Motor Based Applications

Product Range
Capacity 2KVA 2.5KVA 3KVA 3.5KVA 5KVA 7.5KVA 10KVA 12KVA
Nominal Voltage 24VDC 36/48 VDC 48 VDC 48 VDC 48/96 VDC 120 VDC 180,192 VDC 192 VDC
Ac Mains Mode
Input Voltage Range (Normal Mode) 100 to 280 VAC ± 5 VAC
Input Voltage Range (UPS Mode) 180 to 260 VAC ± VAC
Changeover Time Maximum <=30 ms
Max. Charging Current (NC) 9A ± 1A
Max. Charging Current (HC) 12A ± 1A
Boost Charging Voltage 14.4 ± 0.2 VDC
Float Charging Voltage 13.7 ± 0.2 VDC
Battery Backup Mode
Output Voltage at No Load 220 VAC ± 7 VAC
Output Frequency 50.0Hz ± 0.5Hz
Output Wave Form (At No Load) 100% Pure Sine Wave
Battery Low alarm 10.6 ± 0.2 VDC
Battery Low protection 10.4 ± 0.2 VDC
Multi Color LCD Display Colors
  • Yellow Color : For Inverter/ UPS mode. No AC Mains (Utility Power)

  • Green Color : When AC mains (Utility Power) is available

  • Red Color : In case of any Abnormal Condition

Displaying Parameters :

AC mains voltage

O/P Load in %

Battery input voltage

Battery Charging/ Discharging current (Batt. Bar)

Faults Status

  • Overload
  • PV Reverse
  • Short Circuit
  • Fuse Trip
  • Over Temp (Thermometer)
  • Low Battery (Empty ‘Battery’ Blinking)

Inverter Status

Solar availability Status

Protection :

PV Reverse, Reverse Current Flow (to PV module), Battery Voltage Low (4 Auto Retries), Over Load (6 Auto Retries), Battery full Charge, Over Temperature, Short Circuit
